• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare (Standard on CG23405, CG23705, CG33405 and CG33705 models.)
• Tires, front LT245/75R16E all-season, blackwall (Standard on the CG23405, CG23705, CG33405 and CG33705 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on the CG23405, CG23705, CG33405 and CG33705 models.)
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle (Standard on the CG23405, CG23705, CG33405 and CG33705 models.)
• Door, swing-out passenger-side, 60/40 split
• Bumpers, front and rear painted Black with step-pad (Not available with (ZR7) Chrome Appearance Package.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers

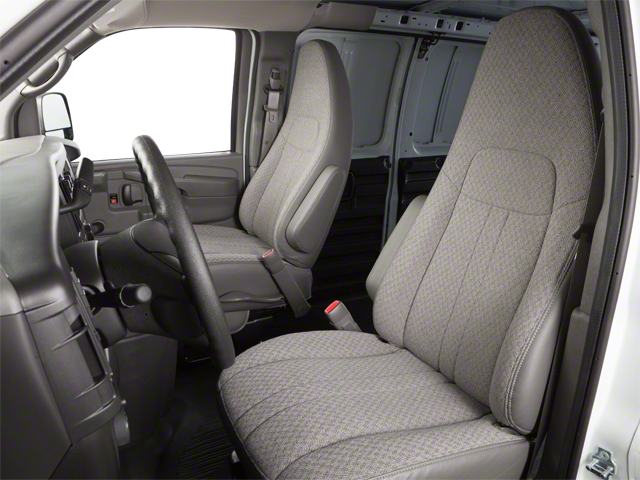

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim.)

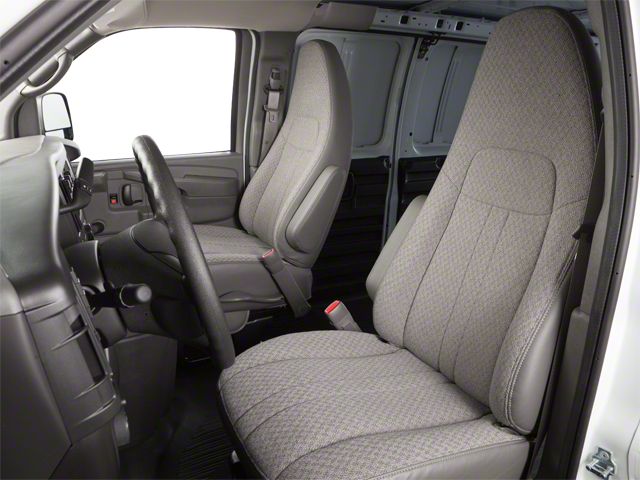

• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)

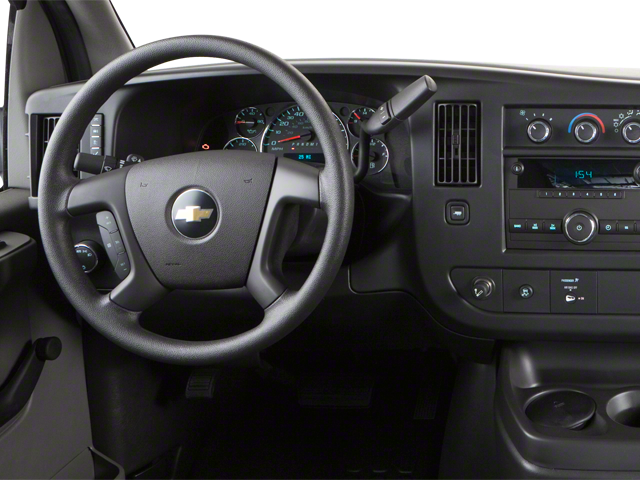

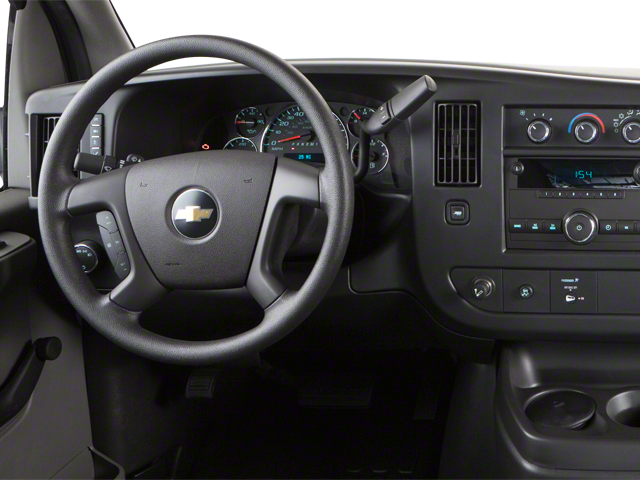

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Trim panels, hinged rear side doors and hinged rear doors
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models CG23405, CG23705, CG33405 and CG33705. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tires)

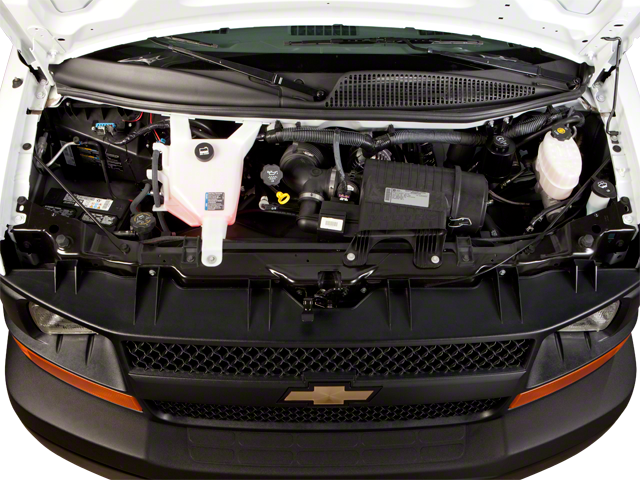

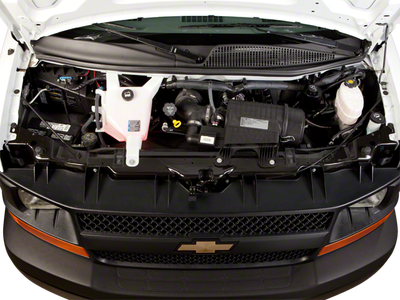

ENGINE, VORTEC 4.8L V8 SFI FLEXFUEL

• (280 hp [208.8 kW] @ 5200 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.

• Preferred Equipment Group 1
• 3.42 Rear Axle Ratio
• 16" x 6.5" Steel Wheels
• Reclining High-Back Front Bucket Seats
• Reclining Front Bucket Seats
• Custom Vinyl Seat Trim

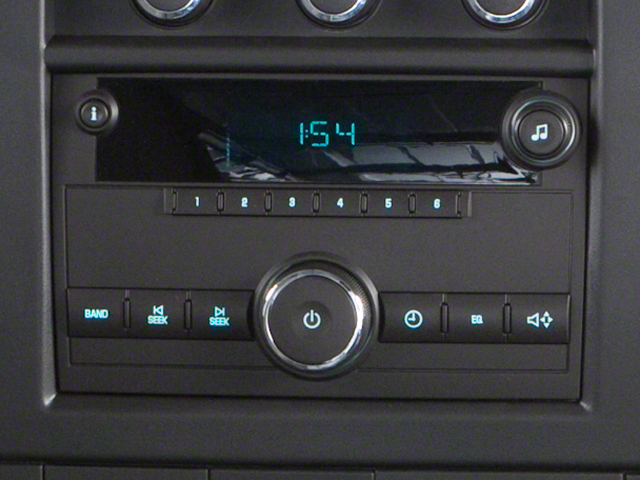

• AM/FM Stereo w/Seek & Scan/Digital Clock

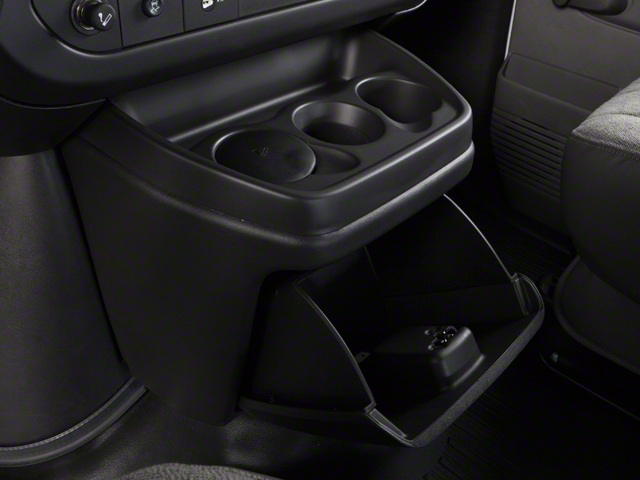

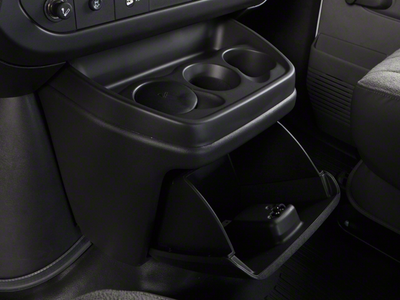

• Engine Cover Console w/Swing-Out Storage Bin
• Fixed Rear Door Glass
• Fixed Rear Door Window Glass
• Inside Rear-View Manual Day/Night Mirror
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Power steering
• Passenger seat mounted armrest
• Passenger door bin
• Passenger cancellable airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 3016
• Curb Weight - Rear (lbs): 2275
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1110
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 81.5
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.8
• Ground Clearance, Front (in): 11.0
• Ground Clearance, Rear (in): 7.1
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.3
• Step Up Height - Side (in): 20.8

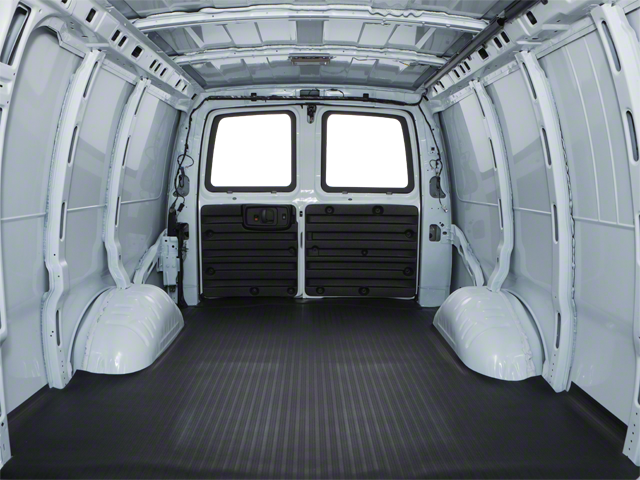

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 124.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 52.9
• Cargo Volume (ft³): 270.4
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 39.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

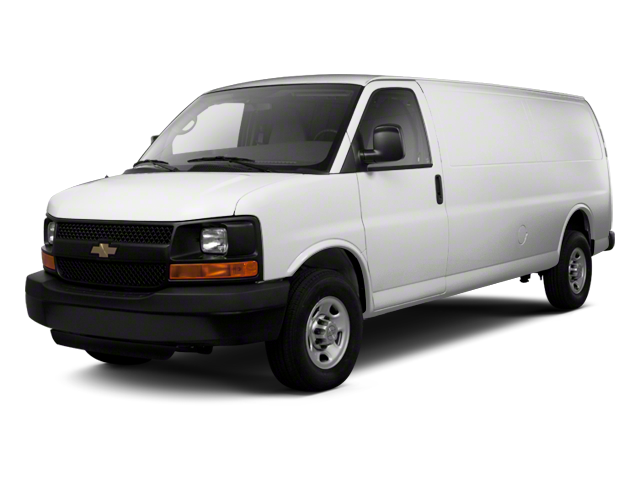

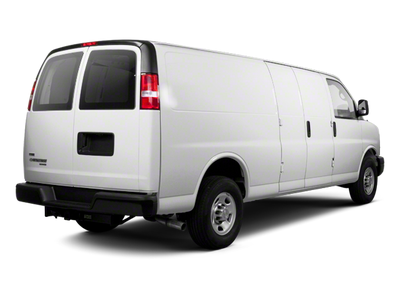

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: 2500 Cargo Van 135" WB
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
